Data Requirements
Overview
As a multi-sector analytical tool, ENERGY 2100 requires data and assumptions covering a broad range of economic sectors and their interactions. Input data are required in the eight areas listed below:
- Economic and demographic
- Fuel prices
- Energy use and consumption
- Technology characteristics
- Financial
- Emissions and air regulations
- Electricity sector
- Oil, gas, coal, steam, oil refinery, and biofuel production
These data inputs are required for each region simulated in the model – Canada (by province and territory), U.S. (by state or EIA census divisions), and Mexico (national-level). ENERGY 2100 requires both historical data and projections to calibrate and generate forward-looking projections. Historical data are input for the period 1985 through the last year for which detailed sector and end-use data are available. Projections through 2050 are input for economic drivers as well as any specific sectors for which exogenous projections are to be calibrated.
Input Data Location

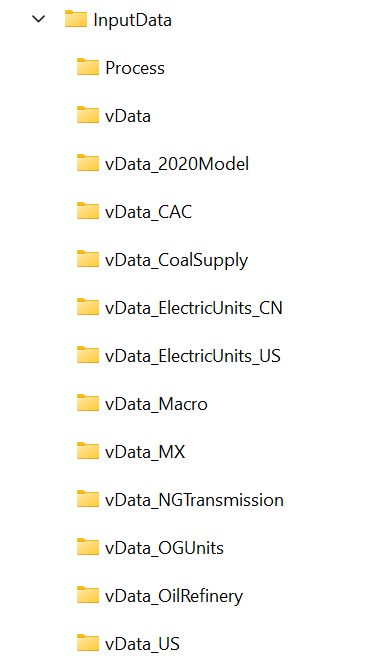

Input data that are updated annually are housed in the \InputData subdirectory in text files saved with .dat file extensions. The \InputData folder is organized into the subfolders shown below.
The type of data stored in each of these folders is listed below:
- vData – Generic input data, mostly for Canada
- vData_US – Generic input data for the U.S.
- vData_MX – Generic input data for Mexico
- vData_CAC – Air pollutant-related input data
- vData_NGTransmission – Natural gas transmission data
- vData_OGUnits – Input data and characteristics of oil and gas plays
- vData_OilRefinery – Data on oil refineries
- vData_CoalSupply – Coal trade flows
- vData_ElectricUnits_CN – Electric unit data for Canada
- vData_ElectricUnits_US – Electric unit data for the U.S.
- vData_Macro – Macroeconomic input data
- vData_2020Model – Input data that previously was stored in text files in \2020Model
Specific types of data and the variables it populates are categorized into the topics below:
- Demand Module Input Data
- Prices Input Data
- Self-Generation/Cogeneration Input Data
- Emissions-Related (GHG) Input Data
- Air Pollutant (CAC) Related Input Data
- Trade Flows Input Data
- Miscellaneous Input Data (Built from 2020Model Text Files)
- Electric Supply Input Data Files
- Electric Generating Unit Input Data Files (Canada)
- Electric Generating Unit Input Data Files (US)
- Macroeconomic Data Files
- Natural Gas Transmission Input Data Files
- Oil Refinery Input Data Files
- U.S. Input Data Files
- Waste Module Input Data
- Coal Supply Input Data Files
- Mexico Input Data Files
- Input Data Files for Oil and Gas Plays
1. Demand Module Input Data
|
\InputData\vData |
||
|
File Name |
Variable (Sets) |
Title |
|
vDCC.dat |
vDCC[vEnduse,vTech,ECC,Area,Year] |
Device Capital Cost (Local 1985\$/mmBtu/Yr) |
|
vDDay.dat |
vDDay[vEnduse,Area,Year] |
Degree days(Degree Days) |
|
vDDayNorm.dat |
vDDayNorm[vEnduse,Area] |
Normal Annual Degree days(Degree Days) |
|
vDEE.dat |
vDEE[vEnduse,vTech,ECC,Area,Year] |
Historical Device Efficiency (Btu/Btu) |
|
vDEETrend.dat |
vDEETrend [vEnduse,TechRes,ECRes,vArea,Year] |
Trend (Trend) |
|
vDEM.dat |
vDEM[vEnduse,vTech,ECC,Area,Year] |
Maximum Device Efficiency (Btu/Btu) |
|
vDEStd.dat |
vDEStd[vEnduse,vTech,ECC,Area,Year] |
Device Efficiency Standards (Btu/Btu) |
|
vDmd.dat |
vDmd[vEnduse,Fuel,ECC,Area,Year] |
Enduse Demands (TBtu/Yr) |
|
vDmd_OG.dat |
vDmd_OG |
|
|
vDOCF.dat |
vDOCF[vEnduse,vTech,ECC,Year] |
Device Operating Cost Fraction (\$/\$) |
|
vDPL.dat |
vDPL[vEnduse,vTech,ECC,Year] |
Physical Life of Equipment (Years) |
|
vDST.dat |
vDST[vEnduse,ECC,Area,Year] |
Device Saturation (Btu/Btu) |
|
vEUDmd.dat |
vEUDmd[Fuel,Area,Year] |
Electric Utility Demands (TBtu/Yr) |
|
vFsDmd.dat |
vFsDmd[Fuel,ECC,Area,Year] |
Feedstock Demands (TBtu/Yr) |
|
vFSUnit.dat |
vFSUnit[ECC,vArea,Year] |
Floorspace per Unit (Sq Units/Building) |
|
vStDmd.dat |
vStDmd[FuelEP,Area,Year] |
Steam Generation Fuel Demands (TBtu/Yr) |
|
vTrDAct.dat |
vTrDAct[TechTrans,ECTrans,vArea,Year] |
Device Activity Level (Ton-Miles/Vehicle-Mile) |
|
vTrDCC.dat |
vTrDCC[TechTrans,ECTrans,vArea,Year] |
Device Capital Cost (Real \$/mmBtu/Yr) |
|
vTrDCMM.dat |
vTrDCMM [TechTrans,ECTrans,vArea,Year] |
Capital Cost Maximum Multiplier (1=2008) |
|
vTrDEE.dat |
vTrDEE[TechTrans,ECTrans,vArea,Year] |
Device Efficiency (miles/mmBtu) |
|
vTrDEE_Default.dat |
vTrDEE[TechTrans,ECTrans,vArea,Year] |
Device Efficiency (miles/mmBtu) |
|
vTrDEM.dat |
vTrDEM[TechTrans,ECTrans,vArea,Year] |
Maximum Device Efficiency (miles/mmBtu) |
|
vTrDmd.dat |
vTrDmd [Fuel,TechTrans,ECTrans,Area,Year] |
Transportation Enduse Demand (TBtu/Yr) |
|
vTrDPConv.dat |
vTrDPConv [TechTrans,ECTrans,vArea,Year] |
Device Process Conversion (Vehicle Mile/Passenger Mile) |
|
vTrDST.dat |
vTrDST[ECTrans,Area,Year] |
Transportation Device Saturation (Btu/Btu) |
|
vTrFsDmd.dat |
vTrFsDmd [FuelFs,TechTrans,ECTrans,Area,Year] |
Transportation Feedstock Demands (TBtu/Yr) |
2. Prices Input Data
|
\InputData\vData |
||
|
File Name |
Variable (Sets) |
Title |
|
vENPN.dat |
vENPN[Fuel,Nation,Year] |
Wholesale Price (Real \$/mmBtu) |
|
vFPBaseF.dat |
vFPBaseF[Fuel,ES,vArea,Year] |
Delivered Fuel Price without Taxes (Real \$/mmBtu) |
|
vFPSMF.dat |
vFPSMF[Fuel,ES,vArea,Year] |
Energy Sales Tax (CN\$/CN\$) |
|
vFPTaxF.dat |
vFPTaxF[Fuel,ES,vArea,Year] |
Fuel Tax (Real \$/mmBtu) |
|
vGAProd.dat |
vGAProd[Process,Area,Year] |
Natural Gas Production (TBtu/Yr) |
3. Self-Generation/Cogeneration Input Data
|
\InputData\vData |
|
|
|
File Name |
Variable (Sets) |
Title |
|
vCgFlFrNew_CN.dat |
vCgFlFrNew[FuelEP,Plant,Area,Year] |
Fuel Fraction for New Plants (Btu/Btu) |
|
vCgFlFrNew_US_MX.dat |
vCgFlFrNew[FuelEP,Plant,Area,Year] |
Fuel Fraction for New Plants (Btu/Btu) |
|
vCgGen.dat |
vCgGen[Fuel,ECC,vArea,Year] |
Cogeneration Generation (GWh/Yr) |
|
vCgORNew_CN.dat |
vCgORNew[Plant,Area,Year] |
Outage Rate for New Plants (MW/MW) |
|
vCgORNew_US_MX.dat |
vCgORNew[Plant,Area,Year] |
Outage Rate for New Plants (MW/MW) |
4. Emissions-Related (GHG) Input Data
|
\InputData\vData |
|
|
|
File Name |
Variable (Sets) |
Title |
|
vEUPOCX.dat |
vEUPOCX[FuelEP,Plant,Poll,vArea,Year] |
Electric Utility Pollution Coefficient (Tonnes/TBtu) |
|
vFlPol.dat |
vFlPol[ECC,Poll,vArea,Year] |
Fugitive Flaring Emissions (Tonnes/Yr) |
|
vFsPOCX.dat |
vFsPOCX[Fuel,ECC,Poll,vArea,Year] |
Feedstock Pollution Coefficient (Tonnes/TBtu) |
|
vFuPol.dat |
vFuPol[ECC,Poll,vArea,Year] |
Fugitive Emissions (Tonnes/Yr) |
|
vMEPol.dat |
vMEPol[ECC,Poll,vArea,Year] |
Non-Energy Pollution (Tonnes/Yr) |
|
vPOCX.dat |
vPOCX[FuelEP,ECC,Poll,vArea,Year] |
Enduse Pollution Coefficient (Tonnes/TBtu) |
|
vTrFsPOCX.dat |
vTrFsPOCX [FuelFs,TechTrans,ECTrans,Poll,vArea,Year] |
Transportation Feedstock Pollution Coefficient (Tonnes/TBtu) |
|
vTrMEPol.dat |
vTrMEPol [TechTrans,ECTrans,Poll,vArea,Year] |
Non-Energy Trans Pollution (Tonnes/Yr) |
|
vTrPOCX.dat |
vTrPOCX [FuelEP,TechTrans,ECTrans,Poll,vArea,Year] |
Transportation Pollution Coefficient (Tonnes/TBtu) |
|
vVnPol.dat |
vVnPol[ECC,Poll,vArea,Year] |
Fugitive Venting Emissions (Tonnes/Yr) |
5. Air Pollutants/CAC Input Data Files
|
InputData\\vData_CAC |
||
|
File Name |
Variable (Sets) |
Title |
|
vCogFPol.dat |
vCogFPol[FuelEP,ECC,Poll,vArea,Year] |
Cogeneration Pollution (Tonnes/Yr) |
|
vEnFPol.dat |
vEnFPol[FuelEP,ECC,Poll,vArea,Year] |
Enduse Energy Pollution (Tonnes/Yr) |
|
vEUPCostN.dat |
vEUPCostN[FuelEP,Plant,Poll,Area,Year] |
Pollution Reduction Cost Normal (Local 1985\$/Tonne) |
|
vEUPOCX.dat |
vEUPOCX[FuelEP,Plant,Poll,vArea,Year] |
Electric Utility Pollution Coefficient (Tonnes/TBtu) |
|
vEUPVF.dat |
vEUPVF[FuelEP,Plant,Poll,Area,Year] |
Pollution Reduction Variance Factor (\$/\$) |
|
vEURPCSw.dat |
vEURPCSw[Plant,Poll,Area,Year] |
Pollution Reduction Curve Switch (Switch) |
|
vFlPol.dat |
vFlPol[ECC,Poll,vArea,Year] |
Fugitive Flaring Emissions (Tonnes/Yr) |
|
vFuPol.dat |
vFuPol[ECC,Poll,vArea,Year] |
Fugitive Emissions (Tonnes/Yr) |
|
vMEPCstN.dat |
vMEPCstN[ECC,Poll,Area,Year] |
Pollution Reduction Cost Normal (Local 1985\$/Tonne) |
|
vMEPol.dat |
vMEPol[ECC,Poll,vArea,Year] |
Non-Energy Pollution (Tonnes/Yr) |
|
vMEPVF.dat |
vMEPVF[ECC,Poll,Area,Year] |
Pollution Reduction Variance Factor (\$/\$) |
|
vMERCSw.dat |
vMERCSw[ECC,Poll,Area,Year] |
Pollution Reduction Curve Switch (Switch) |
|
vOREnFPol.dat |
vOREnFPol[FuelEP,ECC,Poll,vArea,Year] |
Off Road Energy Pollution (Tonnes/Yr) |
|
vPCostN.dat |
vPCostN[FuelEP,ECC,Poll,Area,Year] |
Pollution Reduction Cost Normal (Local 1985\$/Tonne) |
|
vPVF.dat |
vPVF[FuelEP,ECC,Poll,Area,Year] |
Pollution Reduction Variance Factor (\$/\$) |
|
vRPCSw.dat |
vRPCSw[ECC,Poll,Area,Year] |
Pollution Reduction Curve Switch (Switch) |
|
vTrEnFPol.dat |
vTrEnFPol [FuelEP,TechTrans,ECTrans,Poll,vArea,Year] |
Transportation Pollution (Tonnes/Yr) |
|
vTrMEPol.dat |
vTrMEPol [TechTrans,ECTrans,Poll,vArea,Year] |
Non-Energy Trans Pollution (Tonnes/Yr) |
|
vTrPCostN.dat |
vTrPCostN [TechTrans,ECTrans,Poll,Area,Year] |
Pollution Reduction Cost Normal (Local 1985\$/Tonne) |
|
vTrPVF.dat |
vTrPVF[TechTrans,ECTrans,Poll,Area,Year] |
Pollution Reduction Variance Factor (\$/\$) |
|
vTrRPCSw.dat |
vTrRPCSw[ECTrans,Poll,Area,Year] |
Pollution Reduction Curve Switch (Switch) |
|
vVnPol.dat |
vVnPol[ECC,Poll,vArea,Year] |
Fugitive Venting Emissions (Tonnes/Yr) |
6. Trade Flows Input Data
|
vData |
|
|
|
File Name |
Variable (Sets) |
Title |
|
vExports.dat |
vExports[FuelEP,Nation,Year] |
Primary Energy Exports (TBtu/Yr) |
|
vExportsFraction.dat |
vExportsFraction[Fuel,vArea,Year] |
Exports Fraction (Btu/Btu) |
|
vFlow.dat |
vFlow[Fuel,Area,AreaX,Year] |
Historical Energy Flow to Area from AreaX (TBtu/Yr) |
|
vFlowNation.dat |
vFlowNation[Fuel,Nation,NationX,Year] |
Historical Energy Flow to Nation from NationX (TBtu/Yr) |
|
vImports.dat |
vImports[FuelEP,Nation,Year] |
Primary Energy Imports (TBtu/Yr) |
|
vImportsFraction.dat |
vImportsFraction[Fuel,vArea,Year] |
Imports Fraction (Btu/Btu) |
|
vInflowFraction.dat |
vInflowFraction[Fuel,vArea,Year] |
Domestic Inflow Fraction (Btu/Btu) |
|
vLNGAProd.dat |
vLNGAProd[Area,Year] |
LNG Production (TBtu/Yr) |
|
vOAProd.dat |
vOAProd[Process,Area,Year] |
Primary Oil Production (TBtu/Yr) |
|
vOutflowFraction.dat |
vOutflowFraction[Fuel,vArea,Year] |
Domestic Outflow Fraction (Btu/Btu) |
|
vRPPAProd.dat |
vRPPAProd[vArea,Year] |
Refined Petroleum Products Production (TBtu/Yr) |
|
vRPPExports.dat |
vRPPExports[Nation,Year] |
Refined Petroleum Products Exports (TBtu/Yr) |
|
vRPPImports.dat |
vRPPImports[Nation,Year] |
Refined Petroleum Products Imports (TBtu/Yr) |
7. Miscellaneous Input Data (Built from 2020Model Text Files)
|
vData_2020Model |
|
|
|
File Name |
Variable (Sets) |
Title |
|
vDDCoefficient.dat |
vDDCoefficient[vEnduse,Area,Year] |
Annual Energy Degree Day Coefficient (DD/DD) |
|
vDDay.dat |
vDDay[vEnduse,Area,Year] |
Degree days(Degree Days) |
|
vDDayMonthly.dat |
vDDayMonthly [vEnduse,Month,Area,Year] |
Monthly Degree Days (Degree Days) |
|
vDDayNorm.dat |
vDDayNorm[vEnduse,Area] |
Normal Annual Degree days(Degree Days) |
|
vEUPOCX.dat |
vEUPOCX [FuelEP,Plant,Poll,vArea,Year] |
Electric Utility Pollution Coefficient (Tonnes/TBtu) |
|
vGCPot.dat |
vGCPot[Plant,Node,Area,Year] |
Exogenous Maximum Potential Generation Capacity (MW) |
|
vPOCX.dat |
vPOCX[FuelEP,ECC,Poll,vArea,Year] |
Enduse Pollution Coefficient (Tonnes/TBtu) |
|
vVehiclesPerPerson.dat |
vVehiclesPerPerson[Area,Year] |
Average Vehicle Stock Per Person (Vehicles/Person) |
|
vVehicleStock.dat |
vVehicleStock[TechTrans,Area,Year] |
Stock of Vehicles (Vehicles) |
8. Electric Supply Input Data Files
|
\vData |
||
|
File Name |
Variable [Sets] |
Title |
|
vAreaPurchases.dat |
vAreaPurchases[Area,Year] |
Historical Purchases from Areas in the same Country (GWh/Yr) |
|
vAreaSales.dat |
vAreaSales[Area,Year] |
Historical Sales to Areas in the same Country (GWh/Yr) |
|
vCD.dat |
vCD[Plant,Year] |
Construction Delay (Years) |
|
vDesHr_CN.dat |
vDesHr [Plant,Power,Area,Year] |
Design Hours (Hours) |
|
vDesHr_US_MX.dat |
vDesHr[Plant,Power,Area,Year] |
Design Hours (Hours) |
|
vEAF_CN.dat |
vEAF[Plant,Area,Month,Year] |
Energy Availability Factor (MWh/MWh) |
|
vEAF_US_MX.dat |
vEAF[Plant,Area,Month,Year] |
Energy Availability Factor (MWh/MWh) |
|
vEGFA.dat |
vEGFA[Fuel,vArea,Year] |
Electricity Generated (GWh/Yr) |
|
vExpPurchases.dat |
vExpPurchases[Area,Year] |
Historical Purchases from Areas in a different Country (GWh/Yr) |
|
vExpSales.dat |
vExpSales[Area,Year] |
Historical Sales to Areas in a different Country (GWh/Yr) |
|
vECF.dat |
vECF[Fuel,Area,Year] |
Energy Conversion Factors (GJ/Various) |
|
vFlFrNew_CN.dat |
vFlFrNew[FuelEP,Plant,Area,Year] |
Fuel Fraction for New Plants (Btu/Btu) |
|
vFlFrNew_US_MX.dat |
vFlFrNew[FuelEP,Plant,Area,Year] |
Fuel Fraction for New Plants (Btu/Btu) |
|
vGCCCN.dat |
vGCCCN[Plant,vArea,Year] |
Overnight Construction Costs (Real \$/Kw) |
|
vGCPot_CN.dat |
vGCPot[Plant,Node,Area,Year] |
Exogenous Maximum Potential Generation Capacity (MW) |
|
vGCPot_US_MX.dat |
vGCPot[Plant,Node,Area,Year] |
Exogenous Maximum Potential Generation Capacity (MW) |
|
vHDXLoad.dat |
vHDXLoad [Node,NodeX,TimeP,Month,Year] |
Exogenous Loading on Transmission Lines (MW) |
|
vHRTM.dat |
vHRTM[Plant,Area,Year] |
Marginal Heat Rate (Btu/KWh) |
|
vHRtM_CN.dat |
vHRtM[Plant,Area,Year] |
Marginal Heat Rate (Btu/KWh) |
|
vHRtM_US_MX.dat |
vHRtM[Plant,Area,Year] |
Marginal Heat Rate (Btu/KWh) |
|
vLLMax.dat |
vLLMax [Node,NodeX,TimeP,Month,Year] |
Maximum Loading on Transmission Lines (MW) |
|
vLLVC.dat |
vLLVC[Node,NodeX,Year] |
Transmission rate (Real US Dollars/MWh) |
|
vUFOMC.dat |
vUFOMC[Plant,vArea,Year] |
Unit Fixed O&M Costs (Real \$/Kw/Yr) |
|
vORNew_CN.dat |
vORNew[Plant,Area,Year] |
Outage Rate for New Plants (MW/MW) |
|
vORNew_US_MX.dat |
vORNew[Plant,Area,Year] |
Outage Rate for New Plants (MW/MW) |
|
vUOMC.dat |
vUOMC[Plant,vArea,Year] |
Variable O&M Costs (Real \$/MWh) |
9. Electric Generating Unit Input Data Files (Canada)
|
\vData_ElectricUnits_CN |
||
|
File Name |
Variable (Sets) |
Title |
|
vUnArea.dat |
vUnArea |
|
|
vUnCogen.dat |
vUnCogen[Unit] |
Industrial Generation Switch (Switch) (1=Industrial Generation) |
|
vUnDmd.dat |
vUnDmd[Unit,FuelEP,Year] |
Energy Demands (TBtu/Yr) |
|
vUnEAF.dat |
vUnEAF[Unit,Month,Year] |
Energy Availability Factor (GWh/GWh) |
|
vUnEffStorage.dat |
vUnEffStorage[Unit] |
Storage Efficiency (GWH/GWH) |
|
vUnEGA.dat |
vUnEGA[Unit,Year] |
Generation (GWh/Yr) |
|
vUnEmit.dat |
vUnEmit[Unit] |
Does this Unit Emit Pollution (Switch) (1=Yes) |
|
vUnF1.dat |
vUnF1 |
|
|
vUnFacility.dat |
vUnFacility |
|
|
vUnFlFr.dat |
vUnFlFr[Unit,FuelEP,Year] |
Fuel Fraction (Btu/Btu) |
|
vUnGC.dat |
vUnGC[Unit,Year] |
Generating Capacity (MW/Yr) |
|
vUnGCCC.dat |
vUnGCCC[Unit,Year] |
Generating Unit Capital Cost (Real \$/Kw) |
|
vUnGenCo.dat |
vUnGenCo |
|
|
vUnHRt.dat |
vUnHRt[Unit,Year] |
Heat Rate (BTU/KWh) |
|
vUnLimited.dat |
vUnLimited[Unit,Year] |
Limited Energy Units Switch (Switch) (1=Limited Energy Unit) |
|
vUnMustRun.dat |
vUnMustRun[Unit] |
Must Run (Switch) (1=Must Run) |
|
vUnName.dat |
vUnName |
|
|
vUnNation.dat |
vUnNation |
|
|
vUnNode.dat |
vUnNode |
|
|
vUnOnLine.dat |
vUnOnLine[Unit] |
On-Line Date (Year) |
|
vUnOR.dat |
vUnOR[Unit,TimeP,Month,Year] |
Outage Rate (MW/MW) |
|
vUnOUREG.dat |
vUnOUREG[Unit,Year] |
Own Use Rate for Generation (MW/MW) |
|
vUnOURGC.dat |
vUnOURGC[Unit,Year] |
Own Use Rate for Generating Capacity (MW/MW) |
|
vUnOwner.dat |
vUnOwner |
|
|
vUnPlant.dat |
vUnPlant |
|
|
vUnPol.dat |
vUnPol[Unit,FuelEP,Poll,Year] |
Electric Unit Pollution (Tonnes/Yr) |
|
vUnRetire.dat |
vUnRetire[Unit] |
Retirement Date (Year) |
|
vUnSector.dat |
vUnSector |
|
|
vUnSource.dat |
vUnSource[Unit] |
Source (Switch) (1=Endogenous, 0=Exogenous) |
|
vUnSqFr.dat |
vUnSqFr[Unit,Poll,Year] |
Sequestered Pollution Fraction (Tonne/Tonne) |
|
vUnStorage.dat |
vUnStorage[Unit] |
Storage (Switch) (1=Storage, 0=Non-storage) |
|
vUnUFOMC.dat |
vUnUFOMC[Unit,Year] |
Fixed O&M Costs (Real \$/Kw/Yr) |
|
vUnUOMC.dat |
vUnUOMC[Unit,Year] |
Variable O&M Costs (Real \$/MWh) |
10. Electric Generating Unit Input Data Files (US)
|
\vData_ElectricUnits_US |
||
|
File Name |
Variable (Sets) |
Title |
|
vUnArea.dat |
vUnArea |
|
|
vUnCogen.dat |
vUnCogen[Unit] |
Industrial Generation Switch (Switch) (1=Industrial Generation) |
|
vUnDmd.dat |
vUnDmd[Unit,FuelEP,Year] |
Energy Demands (TBtu/Yr) |
|
vUnEAF.dat |
vUnEAF[Unit,Month,Year] |
Energy Avaliability Factor (GWh/GWh) |
|
vUnEGA.dat |
vUnEGA[Unit,Year] |
Generation (GWh/Yr) |
|
vUnEmit.dat |
vUnEmit[Unit] |
Does this Unit Emit Pollution (Switch) (1=Yes) |
|
vUnF1.dat |
vUnF1 |
|
|
vUnFacility.dat |
vUnFacility |
|
|
vUnFlFr.dat |
vUnFlFr[Unit,FuelEP,Year] |
Fuel Fraction (Btu/Btu) |
|
vUnGC.dat |
vUnGC[Unit,Year] |
Generating Capacity (MW/Yr) |
|
vUnGCCC.dat |
vUnGCCC[Unit,Year] |
Generating Unit Capital Cost (Real \$/Kw) |
|
vUnGenCo.dat |
vUnGenCo |
|
|
vUnHRt.dat |
vUnHRt[Unit,Year] |
Heat Rate (BTU/KWh) |
|
vUnMustRun.dat |
vUnMustRun[Unit] |
Must Run (Switch) (1=Must Run) |
|
vUnName.dat |
vUnName |
|
|
vUnNation.dat |
vUnNation |
|
|
vUnNode.dat |
vUnNode |
|
|
vUnOnLine.dat |
vUnOnLine[Unit] |
On-Line Date (Year) |
|
vUnOR.dat |
vUnOR[Unit,TimeP,Month,Year] |
Outage Rate (MW/MW) |
|
vUnOwner.dat |
vUnOwner |
|
|
vUnPlant.dat |
vUnPlant |
|
|
vUnRetire.dat |
vUnRetire[Unit] |
Retirement Date (Year) |
|
vUnSector.dat |
vUnSector |
|
|
vUnSource.dat |
vUnSource[Unit] |
Source (Switch) (1=Endogenous, 0=Exogenous) |
|
vUnUFOMC.dat |
vUnUFOMC[Unit,Year] |
Fixed O&M Costs (Real \$/Kw/Yr) |
|
vUnUOMC.dat |
vUnUOMC[Unit,Year] |
Variable O&M Costs (Real \$/MWh) |
11. Macroeconomic Data Files
|
vData_Macro |
|
|
|
File Name |
Variable (Sets) |
Title |
|
vECUF.dat |
vECUF[ECC,Area,Year] |
Capital Utilization Fraction (\$/\$) |
|
vFloorspaceAEO.dat |
vFloorspaceAEO[ECC,Area,Year] |
Floorspace from AEO (Million Sq Ft) |
|
vGOAEO.dat |
vGOAEO[ECC,Area,Year] |
Gross Output from AEO (2012 M\$/Yr) |
|
vGRPAEO.dat |
vGRPAEO[Area,Year] |
US Gross Regional Product from AEO (Real M\$/Yr) |
|
vHHSAEO.dat |
vHHSAEO[ECC,Area,Year] |
Households from AEO (Households) |
|
vHSize.dat |
vHSize[ECC,Area,Year] |
Household Size (People/Household) |
|
vMWDecayTime.dat |
vMWDecayTime[Area] |
Municipal Waste Decay Time (Years) |
|
vPCPL.dat |
vPCPL[ECC,Area,Year] |
Physical Life of Production Capacity (Years) |
|
vPopAEO.dat |
vPopAEO[ECC,Area,Year] |
Population by Household Type (Millions) |
|
vPopTAEO.dat |
vPopTAEO[Area,Year] |
Population (Millions) |
|
vRPIAEO.dat |
vRPIAEO[Area,Year] |
Total Personal Income (2017 M\$/Yr) |
|
vVehicleSalesRatio.dat |
vVehicleSalesRatio [Fleet,ECCTOM,AreaTOM,Year] |
Transportation Investments as Fraction of Gross Output (Btu/Btu) |
12. Natural Gas Transmission Input Data Files
|
vData_NGTransmission |
||
|
File Name |
Variable (Sets) |
Title |
|
vGAvFrLNG.dat |
vGAvFrLNG[GNode,Month,Year] |
LNG Gas Available for Dispatch (Btu/Btu) |
|
vGAvFrProd.dat |
vGAvFrProd[GNode,Month,Year] |
Production Gas Available for Dispatch (Btu/Btu) |
|
vGAvFrStorage.dat |
vGAvFrStorage[GNode,Month,Year] |
Storage Gas Available for Dispatch (Btu/Btu) |
|
vGFillFrStorage.dat |
vGFillFrStorage[GNode,Month,Year] |
Fraction of Gas Storage which is Filled (Btu/Btu) |
|
vGLSF.dat |
vGLSF[Month,Area,Year] |
Natural Gas Load Shape Factor (Btu/Btu) |
|
vGNodeAreaMap.dat |
vGNodeAreaMap[GNode,Area] |
Natural Gas Node to Area Map (Map) |
|
vGNodeXAreaMap.dat |
vGNodeXAreaMap[GNodeX,Area] |
Natural Gas Node to Area Map (Map) |
|
vGNodeNationMap.dat |
vGNodeNationMap[GNode,Nation] |
Natural Gas Node to Nation Map (Map) |
|
vGNodeXNationMap.dat |
vGNodeXNationMap[GNodeX,Nation] |
Natural Gas Node to Nation Map (Map) |
|
vGLvStorage.dat |
vGLvStorage[GNode,Month,Year] |
Historical Level of Natural Gas in Storage (TBtu) |
|
vGTrMax.dat |
vGTrMax [GNode,GNodeX,Month,Year] |
Natural Gas Transmission Capacity (TBtu/Month) |
|
vGTrEff.dat |
vGTrEff[GNode,GNodeX,Month,Year] |
Natural Gas Transmission Efficiency (TBtu/TBtu) |
|
vGUVCStorage.dat |
vGUVCStorage[GNode,Month,Year] |
Unit Non-Fuel Variable Cost from Storage (\$/mmBtu) |
|
vGCapLNGImports.dat |
vGCapLNGImports [GNode,Month,Year] |
Exogenous LNG Imports Capacity (TBtu/Yr) |
|
vGCapLNGExports.dat |
vGCapLNGExports [GNode,Month,Year] |
Exogenous LNG Exports Capacity (TBtu/Yr) |
|
vGCapStorage.dat |
vGCapStorage[GNode,Month,Year] |
Exogenous Storage Capacity (TBtu/Yr) |
|
vGTrVC.dat |
vGTrVC[GNode,GNodeX,Month,Year] |
Natural Gas Transmission Variable Cost (\$/mmBtu) |
|
vGTrFlow.dat |
vGTrFlow [GNode,GNodeX,Month,Year] |
Natural Gas Transmission Flow (TBtu/Month) |
|
vGVCLNG.dat |
vGVCLNG[GNode,Month,Year] |
Historical Natural Gas Variable Cost from LNG (\$/mmBtu) |
|
vGVCProd.dat |
vGVCProd[GNode,Month,Year] |
Historical Natural Gas Variable Cost from Production (\$/mmBtu) |
|
vGExpDChg.dat |
vGExpDChg[GNode,Month,Year] |
World Natural Gas Price Differential (\$/mmBtu) |
13. Oil Refinery Input Data Files
|
vData_OilRefinery |
||
|
File Name |
Variable (Sets) |
Title |
|
vByFrac.dat |
vByFrac[OGUnit,Year] |
Byproducts Production Fraction (Btu/Btu) |
|
vDevCap.dat |
vDevCap[OGUnit,Year] |
Exogenous Development Capital Costs (\$/mmBtu) |
|
vDevDMB0.dat |
vDevDMB0[OGUnit,Year] |
Development Costs Depletion Multiplier Coefficient (\$/\$) |
|
vDevDpRate.dat |
vDevDpRate[OGUnit,Year] |
Development Depreciation Rate (\$/\$) |
|
vDevLCMB0.dat |
vDevLCMB0[OGUnit,Year] |
Development Costs Learning Curve Multiplier Coefficient (\$/\$) |
|
vDilFrac.dat |
vDilFrac[OGUnit,Year] |
Diluent Fraction (Btu/Btu) |
|
vFkFrac.dat |
vFkFrac[OGUnit,Year] |
Feedstock Fraction (Btu/Btu) |
|
vGRRMax.dat |
vGRRMax[OGUnit,Year] |
Maximum Gross Revenue Royalty Rate (\$/\$) |
|
vGRRMin.dat |
vGRRMin[OGUnit,Year] |
Minimum Gross Revenue Royalty Rate (\$/\$) |
|
vGRRPr.dat |
vGRRPr[OGUnit,Year] |
Gross Revenue Royalty Rate Slope to Price (\$/\$) |
|
vGRRPr0.dat |
vGRRPr0[OGUnit,Year] |
Gross Revenue Royalty Rate Intercept (\$/\$) |
|
vMeanEUR.dat |
vMeanEUR[OGUnit,Year] |
Mean Expected Ultimate Recovery (TBtu/Well) |
|
vNRRMax.dat |
vNRRMax[OGUnit,Year] |
Maximum Net Revenue Royalty Rate (\$/\$) |
|
vNRRMin.dat |
vNRRMin[OGUnit,Year] |
Minimum Net Revenue Royalty Rate (\$/\$) |
|
vNRRPr.dat |
vNRRPr[OGUnit,Year] |
Net Revenue Royalty Rate Slope to Price (\$/\$) |
|
vNRRPr0.dat |
vNRRPr0[OGUnit,Year] |
Net Revenue Royalty Rate Intercept (\$/\$) |
|
vOGAbCFr.dat |
vOGAbCFr[OGUnit,Year] |
OG Abandonment Cost Fraction (\$/\$) |
|
vOGArea.dat |
vOGArea |
|
|
vOGCounter.dat |
vOGCounter[Year] |
Number of OG Units for this Year (Number) |
|
vOGECC.dat |
vOGECC |
|
|
vOGFMap.dat |
vOGFMap[FuelOG,Fuel] |
Map between FuelOG and Fuel (Map) |
|
vOGFPAdd.dat |
vOGFPAdd[OGUnit,Year] |
Price Adder for Supply Cost Search (\$/mmBtu) |
|
vOGFPMax.dat |
vOGFPMax[OGUnit,Year] |
Maximum Price for Supply Cost Search (\$/mmBtu) |
|
vOGFPMin.dat |
vOGFPMin[OGUnit,Year] |
Initial Price for Supply Cost Search (\$/mmBtu) |
|
vOGFPDChg.dat |
vOGFPDChg[OGUnit,Year] |
Wholesale Price Transportation Charge (\$/mmBtu) |
|
vOGFuel.dat |
vOGFuel |
|
|
vOGITxRate.dat |
vOGITxRate[OGUnit,Year] |
OG Initial Tax Rate (\$/\$) |
|
vOGName.dat |
vOGName |
|
|
vOGNation.dat |
vOGNation |
|
|
vOGNode.dat |
vOGNode |
|
|
vOGOGSw.dat |
vOGOGSw |
|
|
vOGECC.dat |
vOGECC |
|
|
vOGProcess.dat |
vOGProcess |
|
|
vOGOMCosts.dat |
vOGOMCosts[OGUnit,Year] |
OG O and M Costs (\$/mmBtu) |
|
vOGROIN.dat |
vOGROIN[OGUnit,Year] |
Return on Investment (\$/Yr/\$) |
|
vOpDMB0.dat |
vOpDMB0[OGUnit,Year] |
Operating Costs Depletion Multiplier Coefficient (\$/\$) |
|
vOpLCMB0.dat |
vOpLCMB0[OGUnit,Year] |
Operating Costs Learning Curve Multiplier Coefficient (\$/\$) |
|
vOWCDays.dat |
vOWCDays[OGUnit,Year] |
Operating Working Capital Days Payment (Days) |
|
vPdC0OG.dat |
vPdC0OG[OGUnit,Year] |
Learning Curve Initial Cumulative Production (TBtu) |
|
vROITarget.dat |
vROITarget[OGUnit,Year] |
ROI Target for Supply Cost Search (\$/\$) |
|
vRsD0OG.dat |
vRsD0OG[OGUnit,Year] |
Learning Curve Initial Developed Resources (TBtu) |
|
vRyLevFactor.dat |
vRyLevFactor[OGUnit,Year] |
Royalty Levelization Factor (\$/\$) |
|
vSusCap.dat |
vSusCap[OGUnit,Year] |
Exogenous Sustaining Capital Costs (\$/mmBtu) |
|
vSusDpRate.dat |
vSusDpRate[OGUnit,Year] |
Sustaining Depreciation Rate (\$/\$) |
14. U.S. Input Data Files
|
\vData_US |
|
|
|
File Name |
Variable (Sets) |
Title |
|
vCProd.dat |
vCProd[Area,Year] |
Coal Production (TBtu/Yr) |
|
vDmd.dat |
vDmd[vEnduse,Fuel,ECC,Area,Year] |
Enduse Demands (TBtu/Yr) |
|
vDST.dat |
vDST[vEnduse,ECC,Area,Year] |
Device Saturation (Btu/Btu) |
|
vEUDmd.dat |
vEUDmd[Fuel,Area,Year] |
Electric Utility Demands (TBtu/Yr) |
|
vExports.dat |
vExports[FuelEP,Nation,Year] |
Primary Energy Exports (TBtu/Yr) |
|
vFPF.dat |
vFPF[Fuel,ES,Area,Year] |
Delivered Fuel Price, including Taxes (Real Dollars per mmBtu) |
|
vFsDmd.dat |
vFsDmd[Fuel,ECC,Area,Year] |
Feedstock Demands (TBtu/Yr) |
|
vGAProd.dat |
vGAProd[Process,Area,Year] |
Natural Gas Production (TBtu/Yr) |
|
vHDXLoad.dat |
vHDXLoad [Node,NodeX,TimeP,Month,Year] |
Exogenous Loading on Transmission Lines (MW) |
|
vImports.dat |
vImports[FuelEP,Nation,Year] |
Primary Energy Imports (TBtu/Yr) |
|
vLLVC.dat |
vLLVC[Node,NodeX,Year] |
Transmission rate (Real US Dollars/MWh) |
|
vLNGAProd.dat |
vLNGAProd[Area,Year] |
LNG Production (TBtu/Yr) |
|
vMinLd.dat |
vMinLd[Month,Area,Year] |
Historical Monthly Minimum Load (MW/Month) |
|
vMonOut.dat |
vMonOut[Month,Area,Year] |
Historical Monthly Output (GWh/Month) |
|
vOAProd.dat |
vOAProd[Process,Area,Year] |
Primary Oil Production (TBtu/Yr) |
|
vPkLoad.dat |
vPkLoad[Month,Area,Year] |
Historical Monthly Peak Load (MW/Month) |
|
vPolImports.dat |
vPolImports[Poll,Area,Year] |
Reference Case Imported Electricity Emissions (Tonnes/Yr) |
|
vRnImports.dat |
vRnImports[Area,Year] |
Exogenous Renewable Generation Imports (GWh/Yr) |
|
vRPPExports.dat |
vRPPExports[Nation,Year] |
Refined Petroleum Products Exports (TBtu/Yr) |
|
vRPPImports.dat |
vRPPImports[Nation,Year] |
Refined Petroleum Products Imports (TBtu/Yr) |
|
vRPPProd.dat |
vRPPProd[Nation,Year] |
Refined Petroleum Products Production (TBtu/Yr) |
|
vTrDmd.dat |
vTrDmd [Fuel,TechTrans,ECTrans,Area,Year] |
Transportation Enduse Demand (TBtu/Yr) |
|
vTrDST.dat |
vTrDST[ECTrans,Area,Year] |
Transportation Device Saturation (Btu/Btu) |
|
vTrFsDmd.dat |
vTrFsDmd [FuelFs,TechTrans,ECTrans,Area,Year] |
Transportation Feedstock Demands (TBtu/Yr) |
15. Waste Module Input Data
|
\vData |
|
|
|
File Name |
Variable [Sets] |
Title |
|
vCapture_Rate.dat |
vCapture_Rate[Waste,vArea,Year] |
CH4 Recovery Fraction (Tonnes/Tonnes) |
|
vDDOCm_accum.dat |
vDDOCm_accum[Waste,vArea,Year] |
Initial DDOC Accumulation (Tonnes) |
|
vDiversionRate.dat |
vDiversionRate[Waste,vArea,Year] |
Proportion of Diverted Waste (Tonnes/Tonnes) |
|
vDOCDecomposeFraction.dat |
vDOCDecomposeFraction [Waste,vArea,Year] |
Fraction of Decomposable DOC (Tonnes/Tonnes) |
|
vDOC.dat |
vDOC[Waste,vArea,Year] |
Fraction of Degradable Organic Carbon per Waste Landfilled (Tonnes/Tonnes) |
|
vFlaring_Rate.dat |
vFlaring_Rate[Waste,vArea,Year] |
CH4 Flaring Fraction (Tonnes/Tonnes) |
|
vGenerated_Driver.dat |
vGenerated_Driver [Waste,vArea,Year] |
Waste per Capita (Tonnes/Driver) |
|
vIncinerated.dat |
vIncinerated[Waste,vArea,Year] |
Fraction of Waste Incinerated (Tonnes/Tonnes) |
|
vk.dat |
vk[Waste,vArea,Year] |
CH4 Generation Constant (1/Yr) |
|
vXport.dat |
vXport[Waste,vArea,Year] |
Fraction of Waste Exported (Tonnes/Tonnes) |
16. Coal Supply Input Data Files
|
\vData_CoalSupply |
|
|
|
File Name |
Variable [Sets] |
Title |
|
vCExports.dat |
vCExports[vArea,Year] |
Coal Exports (TBtu/Yr) |
|
vCImports.dat |
vCImports[vArea,Year] |
Coal Imports (TBtu/Yr) |
|
vCProd.dat |
vCProd[Area,Year] |
Coal Production (TBtu/Yr) |
17. Mexico Input Data Files
|
\vData_MX |
|
|
|
File Name |
Variable (Sets) |
Title |
|
vCProd.dat |
vCProd[Area,Year] |
Coal Production (TBtu/Yr) |
|
vDmd.dat |
vDmd[vEnduse,Fuel,ECC,Area,Year] |
Enduse Demands (TBtu/Yr) |
|
vDST.dat |
vDST[vEnduse,ECC,Area,Year] |
Device Saturation (Btu/Btu) |
|
vExports.dat |
vExports[FuelEP,Nation,Year] |
Primary Energy Exports (TBtu/Yr) |
|
vExpPurchases.dat |
vExpPurchases[Area,Year] |
Historical Purchases from Areas in a different Country (GWh/Yr) |
|
vExpSales.dat |
vExpSales[Area,Year] |
Historical Sales to Areas in a different Country (GWh/Yr) |
|
vGAProd.dat |
vGAProd[Process,Area,Year] |
Natural Gas Production (TBtu/Yr) |
|
vGO.dat |
vGO[ECC,Area,Year] |
Gross Output (Real 1985 M\$/Yr) |
|
vGRP.dat |
vGRP[Area,Year] |
Gross Regional Product (Real 1985 M\$/Yr) |
|
vImports.dat |
vImports[FuelEP,Nation,Year] |
Primary Energy Imports (TBtu/Yr) |
|
vMinLd.dat |
vMinLd[Month,Area,Year] |
Historical Monthly Minimum Load (MW/Month) |
|
vMonOut.dat |
vMonOut[Month,Area,Year] |
Historical Monthly Output (GWh/Month) |
|
vOAProd.dat |
vOAProd[Process,Area,Year] |
Primary Oil Production (TBtu/Yr) |
|
vPkLoad.dat |
vPkLoad[Month,Area,Year] |
Historical Monthly Peak Load (MW/Month) |
|
vPopT.dat |
vPopT[Area,Year] |
Population (Millions) |
|
vRPI.dat |
vRPI[Area,Year] |
Total Personal Income (Real 1985 M\$/Yr) |
|
vRPPExports.dat |
vRPPExports[Nation,Year] |
Refined Petroleum Products Exports (TBtu/Yr) |
|
vRPPImports.dat |
vRPPImports[Nation,Year] |
Refined Petroleum Products Imports (TBtu/Yr) |
|
vRPPProd.dat |
vRPPProd[Nation,Year] |
Refined Petroleum Products Production (TBtu/Yr) |
|
vTrDmd.dat |
vTrDmd [Fuel,TechTrans,ECTrans,Area,Year] |
Transportation Enduse Demand (TBtu/Yr) |
|
vTrDST.dat |
vTrDST[ECTrans,Area,Year] |
Transportation Device Saturation (Btu/Btu) |
18. Input Data Files for Oil and Gas Plays
|
\InputData\vData_OGUnits |
||
|
File |
Variable [Sets] |
Description |
|
vByFrac.dat |
vByFrac[OGUnit,Year] |
Byproducts Production Fraction (Btu/Btu) |
|
vDevCap.dat |
vDevCap[OGUnit,Year] |
Exogenous Development Capital Costs ($/mmBtu) |
|
vDevDMB0.dat |
vDevDMB0[OGUnit,Year] |
Development Costs Depletion Multiplier Coefficient ($/$) |
|
vDevDpRate.dat |
vDevDpRate[OGUnit,Year] |
Development Depreciation Rate ($/$) |
|
vDevLCMB0.dat |
vDevLCMB0[OGUnit,Year] |
Development Costs Learning Curve Multiplier Coefficient ($/$) |
|
vDilFrac.dat |
vDilFrac[OGUnit,Year] |
Diluent Fraction (Btu/Btu) |
|
vFkFrac.dat |
vFkFrac[OGUnit,Year] |
Feedstock Fraction (Btu/Btu) |
|
vGRRMax.dat |
vGRRMax[OGUnit,Year] |
Maximum Gross Revenue Royalty Rate ($/$) |
|
vGRRMin.dat |
vGRRMin[OGUnit,Year] |
Minimum Gross Revenue Royalty Rate ($/$) |
|
vGRRPr.dat |
vGRRPr[OGUnit,Year] |
Gross Revenue Royalty Rate Slope to Price ($/$) |
|
vGRRPr0.dat |
vGRRPr0[OGUnit,Year] |
Gross Revenue Royalty Rate Intercept ($/$) |
|
vMeanEUR.dat |
vMeanEUR[OGUnit,Year] |
Mean Expected Ultimate Recovery (TBtu/Well) |
|
vNRRMax.dat |
vNRRMax[OGUnit,Year] |
Maximum Net Revenue Royalty Rate ($/$) |
|
vNRRMin.dat |
vNRRMin[OGUnit,Year] |
Minimum Net Revenue Royalty Rate ($/$) |
|
vNRRPr.dat |
vNRRPr[OGUnit,Year] |
Net Revenue Royalty Rate Slope to Price ($/$) |
|
vNRRPr0.dat |
vNRRPr0[OGUnit,Year] |
Net Revenue Royalty Rate Intercept ($/$) |
|
vOGAbCFr.dat |
vOGAbCFr[OGUnit,Year] |
OG Abandonment Cost Fraction ($/$) |
|
vOGArea.dat |
vOGArea[OGUnit] |
OG Unit Area (set attribute) |
|
vOGCounter.dat |
vOGCounter[Year] |
Number of OG Units for this Year (Number) |
|
vOGECC.dat |
vOGECC[OGUnit] |
OG Exploration Capital Cost (set attribute) |
|
vOGFMap.dat |
vOGFMap[FuelOG,Fuel] |
Map between FuelOG and Fuel (Map) |
|
vOGFPAdd.dat |
vOGFPAdd[OGUnit,Year] |
Price Adder for Supply Cost Search ($/mmBtu) |
|
vOGFPDChg.dat |
vOGFPDChg[OGUnit,Year] |
Wholesale Price Transportation Charge ($/mmBtu) |
|
vOGFPMax.dat |
vOGFPMax[OGUnit,Year] |
Maximum Price for Supply Cost Search ($/mmBtu) |
|
vOGFPMin.dat |
vOGFPMin[OGUnit,Year] |
Inital Price for Supply Cost Search ($/mmBtu) |
|
vOGFuel.dat |
vOGFuel[OGUnit] |
OG Unit Fuel (set attribute) |
|
vOGITxRate.dat |
vOGITxRate[OGUnit,Year] |
OG Initial Tax Rate ($/$) |
|
vOGName.dat |
vOGName[OGUnit] |
OG Unit Name (set attribute) |
|
vOGNation.dat |
vOGNation[OGUnit] |
OG Unit Nation (set attribute) |
|
vOGNode.dat |
vOGNode[OGUnit] |
OG Unit Node (set attribute) |
|
vOGOGSw.dat |
vOGOGSw[OGUnit] |
OG Operational Switch (set attribute) |
|
vOGOMCosts.dat |
vOGOMCosts[OGUnit,Year] |
OG O and M Costs ($/mmBtu) |
|
vOGProcess.dat |
vOGProcess[OGUnit] |
OG Unit Process (set attribute) |
|
vOGROIN.dat |
vOGROIN[OGUnit,Year] |
Return on Investment ($/Yr/$) |
|
vOpDMB0.dat |
vOpDMB0[OGUnit,Year] |
Operating Costs Depletion Multiplier Coefficient ($/$) |
|
vOpLCMB0.dat |
vOpLCMB0[OGUnit,Year] |
Operating Costs Learning Curve Multiplier Coefficient ($/$) |
|
vOWCDays.dat |
vOWCDays[OGUnit,Year] |
Operating Working Capital Days Payment (Days) |
|
vPdC0OG.dat |
vPdC0OG[OGUnit,Year] |
Learning Curve Initial Cumulative Production (TBtu) |
|
vROITarget.dat |
vROITarget[OGUnit,Year] |
ROI Target for Supply Cost Search ($/$) |
|
vRsD0OG.dat |
vRsD0OG[OGUnit,Year] |
Learning Curve Initial Developed Resources (TBtu) |
|
vRyLevFactor.dat |
vRyLevFactor[OGUnit,Year] |
Royalty Levelization Factor ($/$) |
|
vSusCap.dat |
vSusCap[OGUnit,Year] |
Exogenous Sustaining Capital Costs ($/mmBtu) |
|
vSusDpRate.dat |
vSusDpRate[OGUnit,Year] |
Sustaining Depreciation Rate ($/$) |
